Description
Horizontal Fixed sun louver Architectural Aerofoil profile aluminum louver for window sunshade
PROLOUVER Manufacture Airfoil Aluminum Architectural Sun Louver used for exterior façade curtain wall Cladding,screening,
PROLOUVER metal sun louver includes Aerofoil sun louver, Aerobrise sun louver, Celoscreen sun louver,Aeroscreen sun louver, Aerowing sun louver,Box sun louver.Customized louvers are available according to Architect’s design.
Prolouver Aerofoil Aerofoil Aluminum Architectural Sun Louver size showing as below, made of aluminum profile | aluminum extrusion section 6063-T5
| Materials: | Aluminum extrusion (6063-T5/T6) |
| Size/Width: | 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm,600mm |
| Length: | From 1000mm-7000mm |
| Thickness: | From 1.0mm-3.0mm |
| Surface finish: | Powder coated, flurocarbon paint, Anodized |
| Color: | Any RAL colors and wooden grain colors are available. |
| Coating: | Akzo Nobel, PPG, etc. |
| Applications: | Commercial Building, School, Metro, Raiway station, Office, Residential, etc. |
PROLOUVER Aerofoil Aluminum exterior sun louver are based on aluminum extrusions, mainly in elliptic shape, has various size of sun louvers blades, width size including,50mm,60mm,75mm,90mm,100mm,150mm,200mm,250mm,300mm,350mm,400mm,450mm,600mm,max. length is 7M long. The length depends on wind load and clients requirement.
Materials:
Aluminum extrusion (6063-T5/T6)
Size/Width:
100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:
From 1000mm-7000mm
Thickness:
From 1.0mm-3.0mm
Surface finish:
Powder coated, flurocarbon paint, Anodized
Color:
Any RAL colors and wooden grain colors are available.
Coating:
Akzo Nobel, PPG, etc.
Applications:
Commercial Building, School, Metro, Raiway station, Office, Residential, etc.

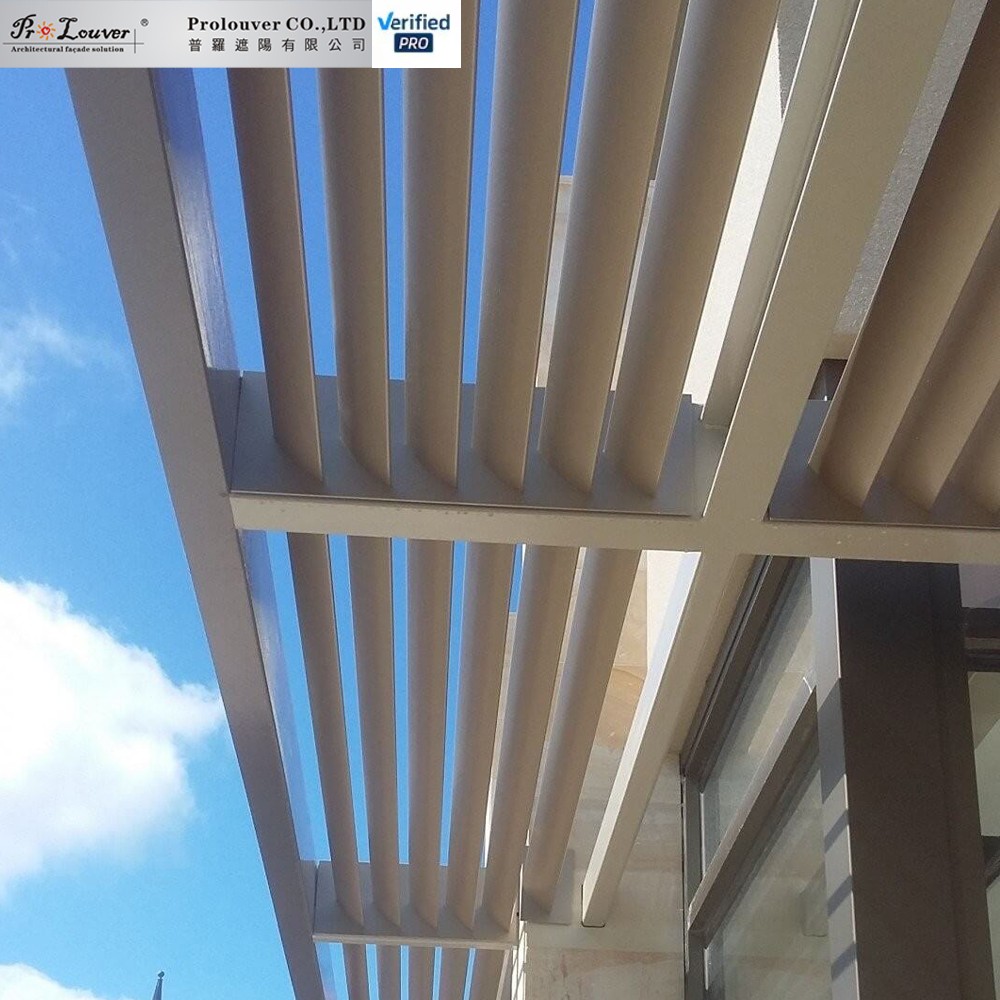

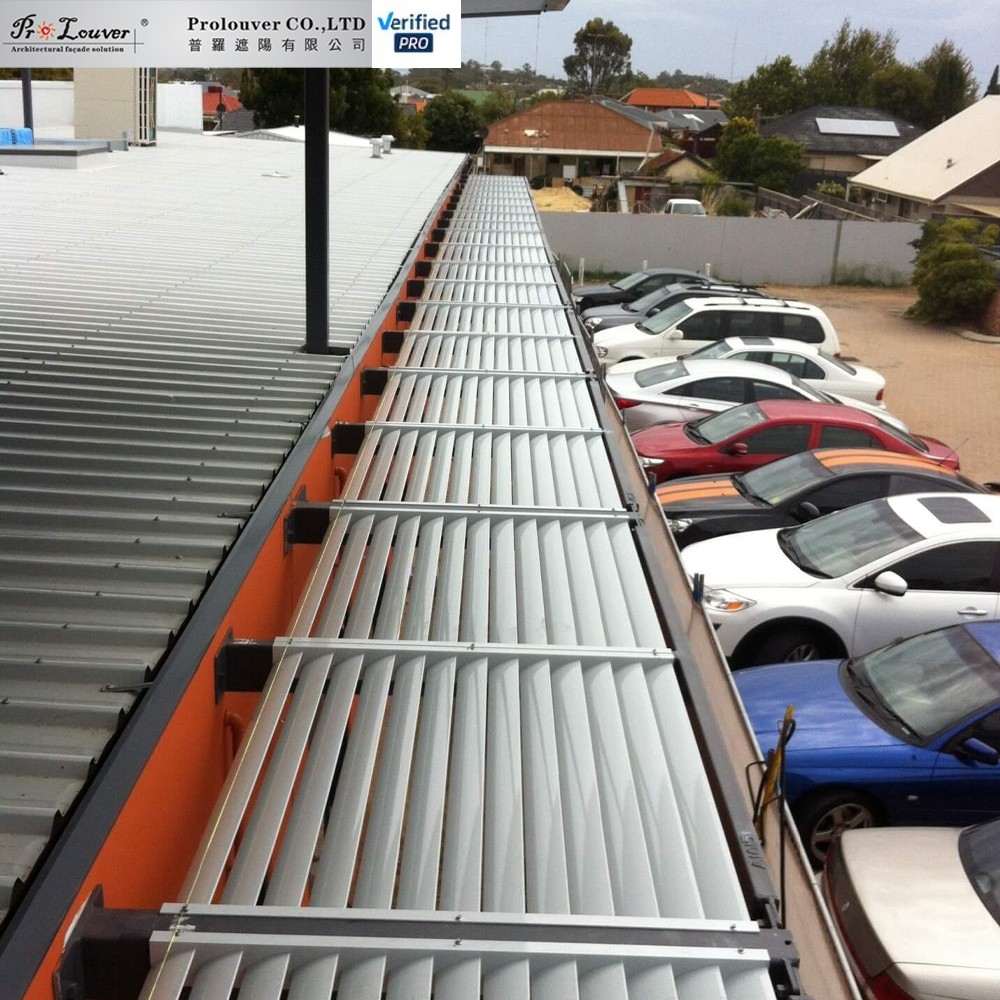

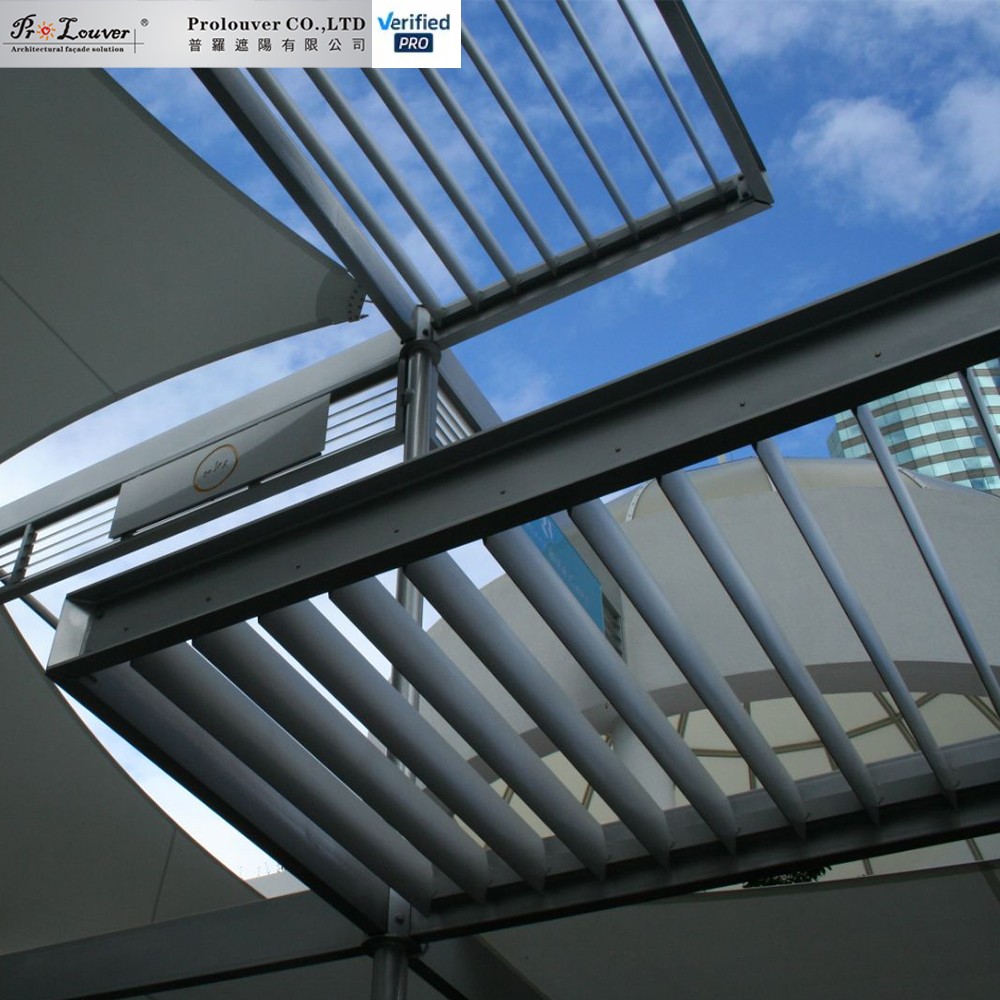

Prolouver Aerofoil aluminum exterior sun louver can be installed vertical, horizontal or angled. They can be installed in a fixed position or can be adjustable manually, by motor with switch control. It is suitable for various of sun shading of modern commercial buildings large-scale glass curtain wall, windows, and glass roof as awning, with grand building structure.
PROLOUVER Aerofoil Aluminium architectural façade sun louvers:
|
Installation ways Reference |
|
| A |
Fix to the support frame with screw |
| B |
Using Bracket and screw to the support frame |
| C |
Using the Endcaps to fix on two ends |
| D |
As per Architect’s design |
Packaging & Shipping
- Packaging: Aerofoil aluminum extrusion sun louver packed in strong cartons, bubble film,Pearl cotton or according to your requirements
- Delivery: 15-20 Days, Depends on order qty.
Company Information
PROLOUVER is the leading professional manufacturer for architectural building materials in China.
PROLOUVER facades and sun louvers are mainly used for exterior architectural decoration. with excellent performance against exterior weather, with 10-20 years warranty on discoloration.
PROLOUVER developed and produced various types of sun louvers,with successful projects throughout China and other parts of the World, and is considered a leader and innovator in the field. PROLOUVER has comprehensive range of Aluminum sun louver, including Aerofoil sun louver, Aerobrise sun louver, Celoscreen sun louver, Aeroscreen sun louver, Aerowing sun louver, and Box louver sun louver,acoustic sun louver.Various design and colors are available, depends on the architect's design and customers' prefer
PROLOUVER we know how important customers are, and we take the name "PROOUVERL as our core value to offer the best products and services.
We have fully implemented ISO 9001:2008 DNV quality management systems in all aspects including engineering design, production, inspection, testing, construction and installation etc. We have a young, passion, creative and energetic team, we will do our best to offer high quality products and the best service with the competitive price and to our clients all over the world.
